Front Derailleur Sram Rival Etap AXS 2/12 Speeds

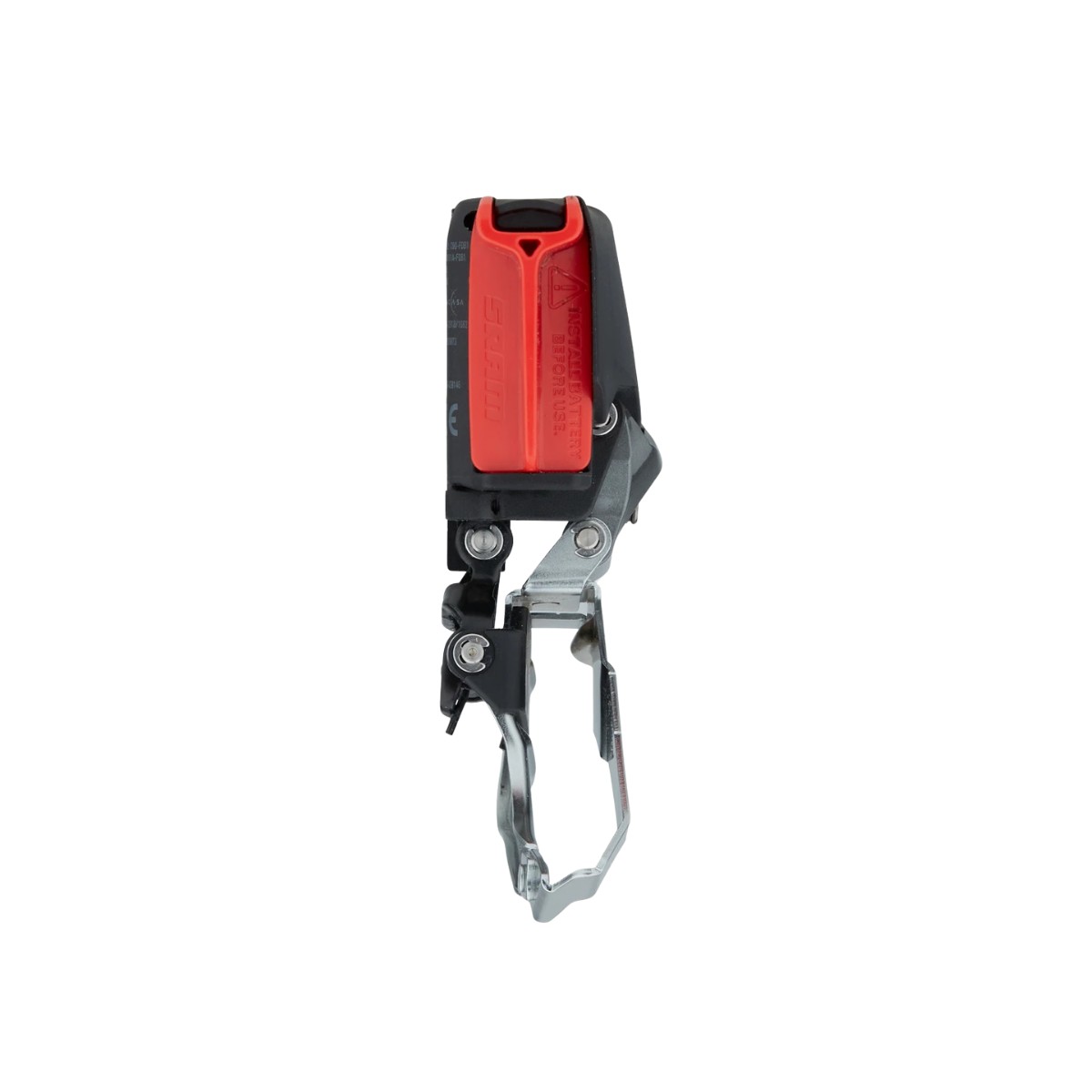

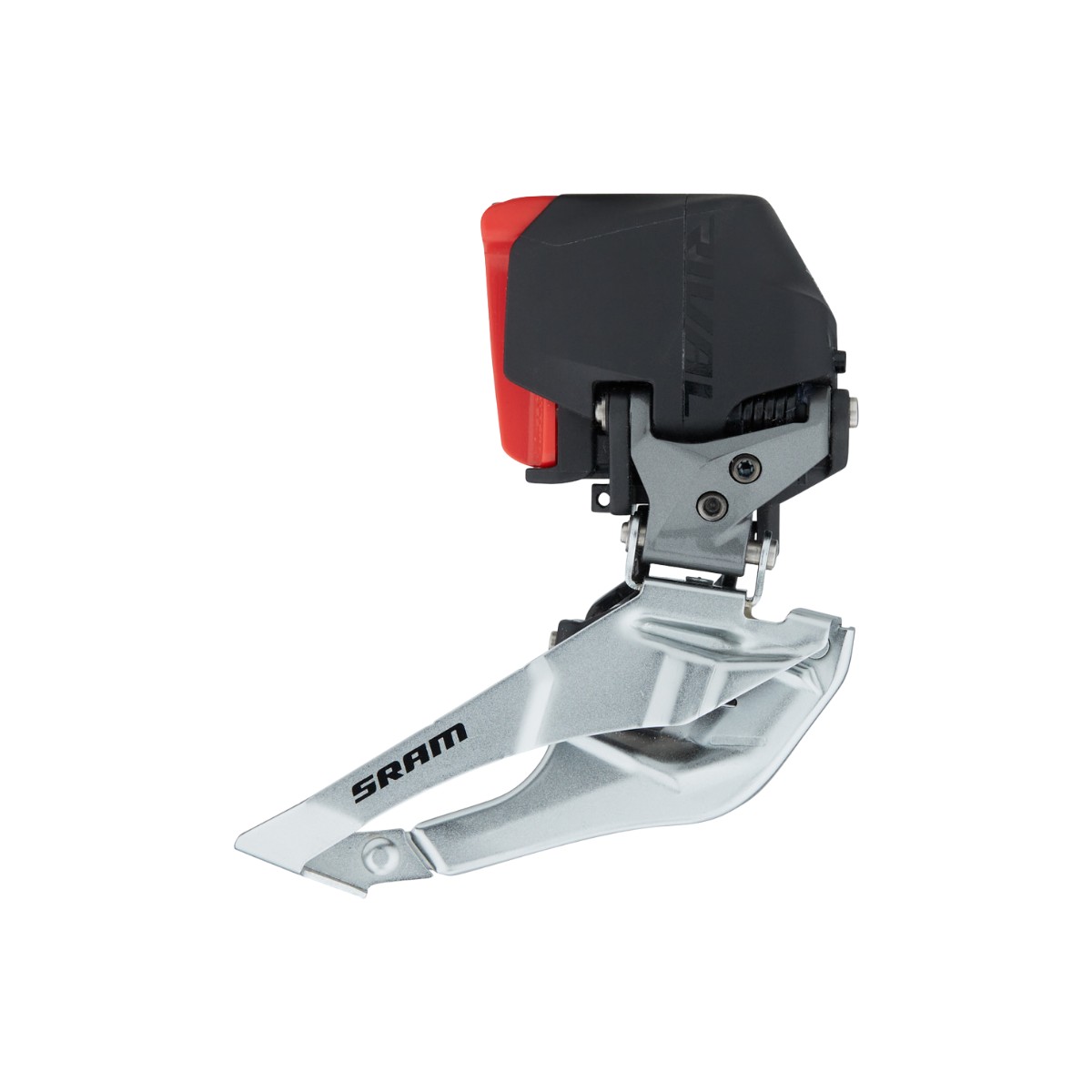

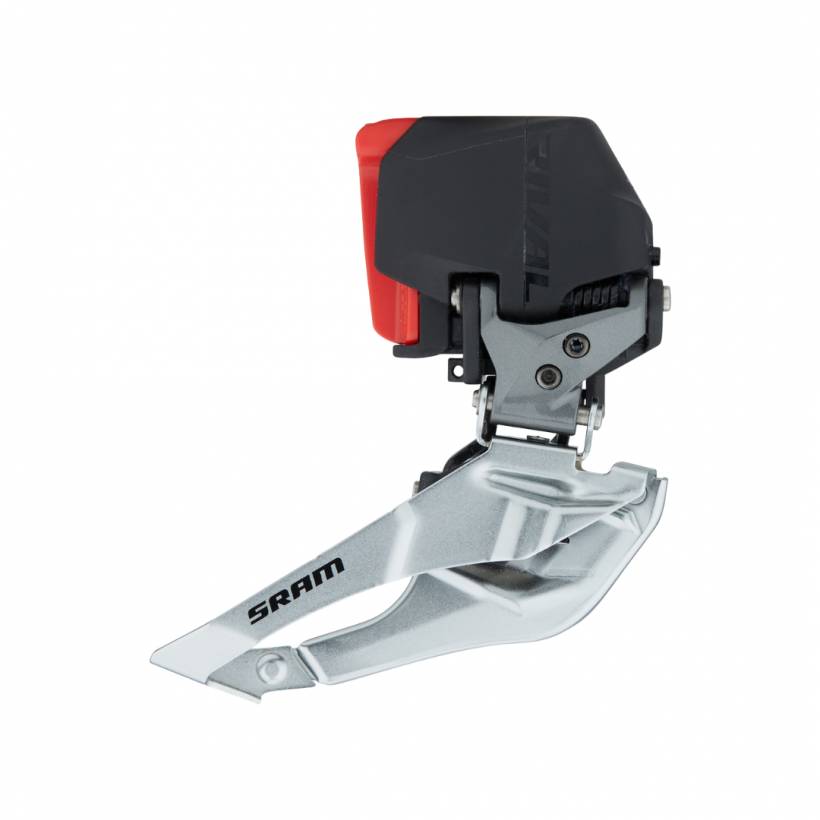

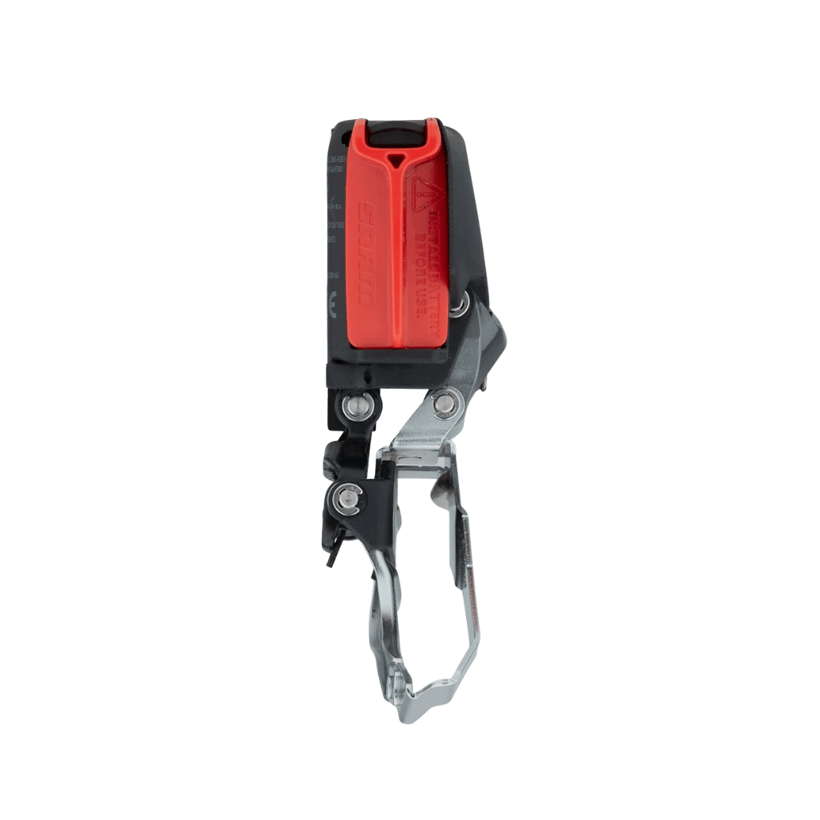

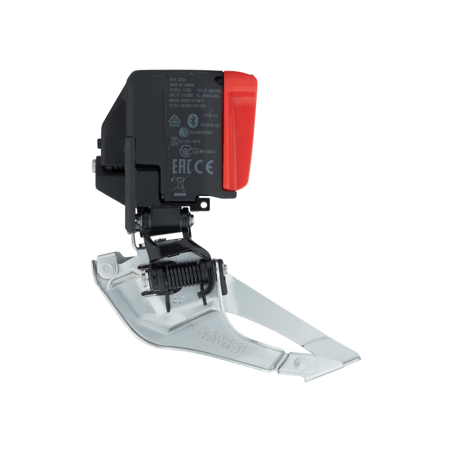

SRAM Rival eTap AXS Front Derailleur

The Rival Series SRAM eTap AXS Front Derailleur is electronically controlled and shifts smoothly and directly on your 2x12-speed road bike. It harmonizes especially with X-Range chainrings with a gradation of 33-46 or 35-48 teeth.

With AXS you can shift electronically without the need for wiring, and you can also adjust the switching behavior with the help of the app. The eTap shift logic is intuitive and allows for hassle-free gear changing. Thanks to Yaw&trade technology, fine adjustment is no longer necessary.

Specifications:

• Series : Rival eTap AXS
• Field of application: Route
• Transmissions : 2-speed (in combination with 12-speed
• Chain support angle : 61 - 66°
• Chain Line : 45.0mm
• Maximum Chainring Size: 48T
• Capacity : 13 teeth
• Movement: Down-Swing
• Fixing: Welded
• Battery: Not included

Technical data:

External parallelogram material: Aluminum

Inner parallelogram material: Aluminum

Guide plate material: Aluminum

Characteristics:

• Optimized for chainring combinations with 33-46 or 35-48 teeth
• Easy customization with SRAM AXS
• Classic Yaw cage technology

Technologies:

AXS™ : AXS is SRAM's new electronic integration platform, combining bike electronics with software. The SRAM AXS app allows you to view battery status, change component behavior, adjust controls, receive maintenance reminders, and update firmware.

eTap™ : SRAM's eTap is simple, unambiguous and intuitive switching logic. With the left shifter you shift the system in to a larger cog, with the right shifter out to a smaller cog. With the gear lever pressed, you can directly change various gears. Depressing both shifters at the same time produces a 2-speed derailleur movement.

Yaw™ : Yaw technology allows for cutting-free shifting as the derailleur cage describes an arc and therefore stays at a constant angle to the chain. Gear transitions are thus more direct and precise, ensuring unrivaled performance when shifting at the front.

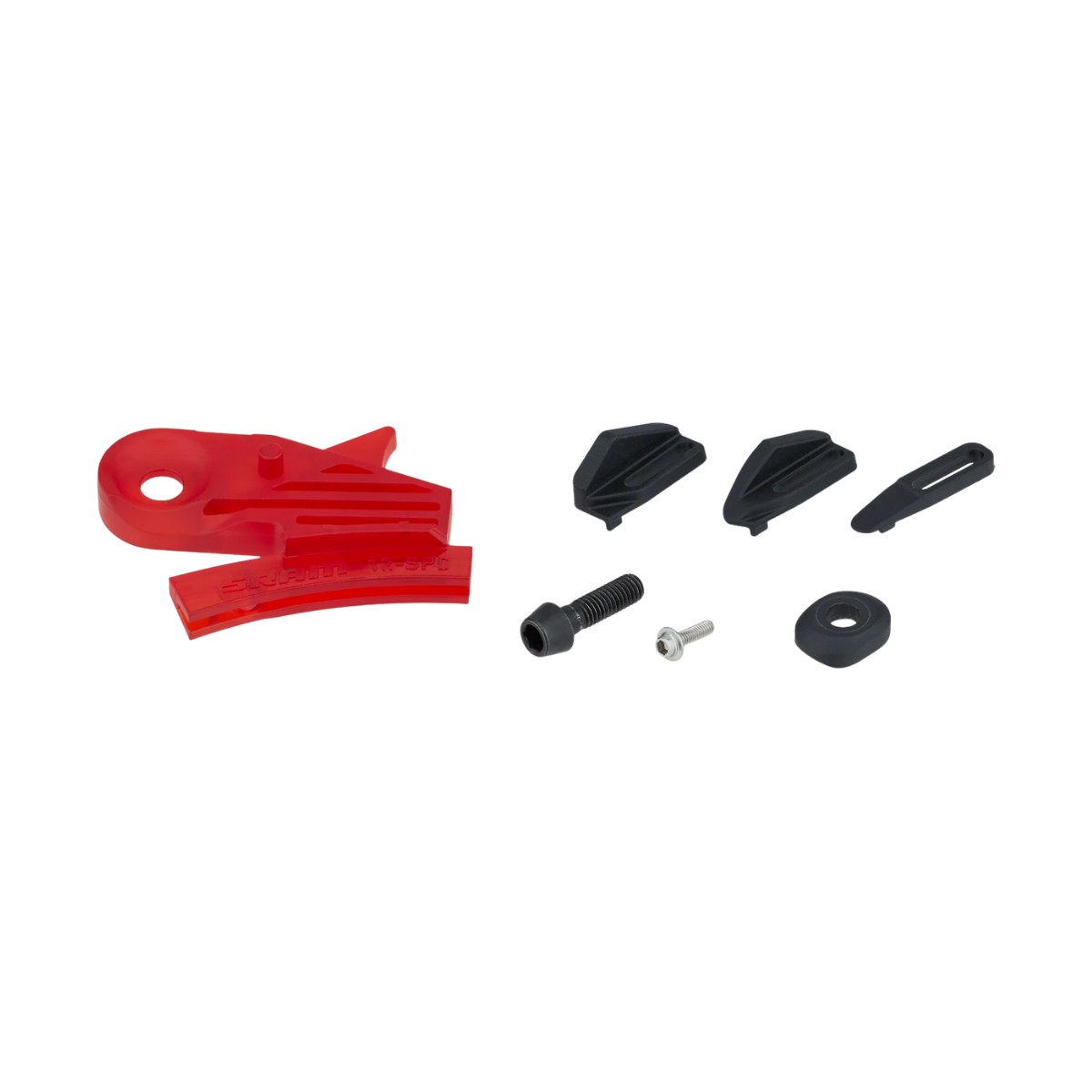

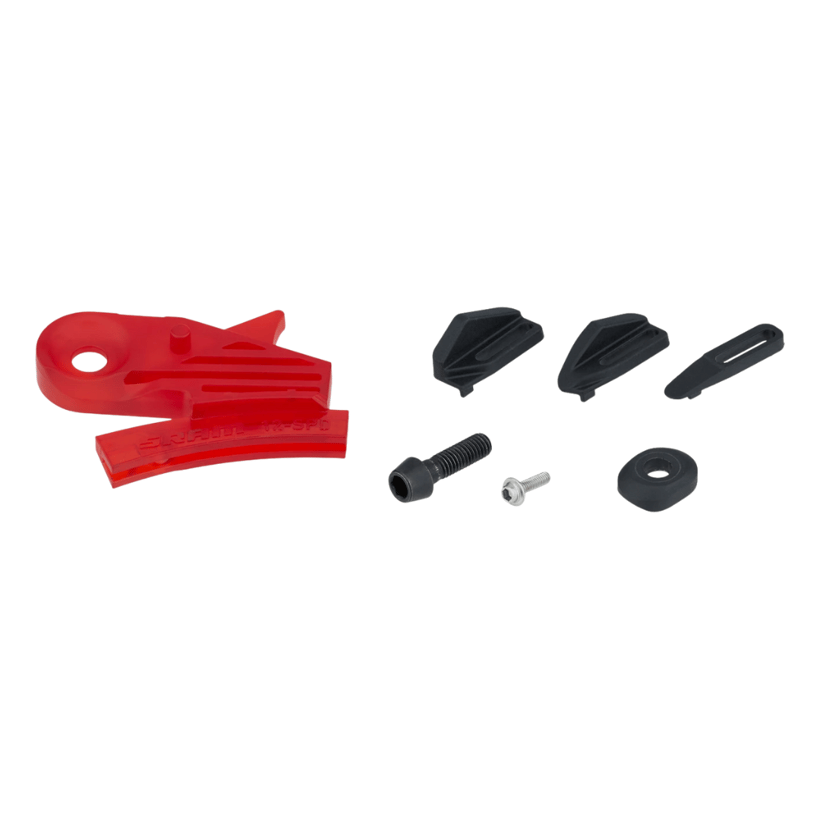

Shipping volume:

• 1 x SRAM Rival eTap AXS front derailleur
• 1 x SRAM fixing bolt
• 1 x SRAM Washer
• 3 x SRAM adapter shim
• 1 x Screw
