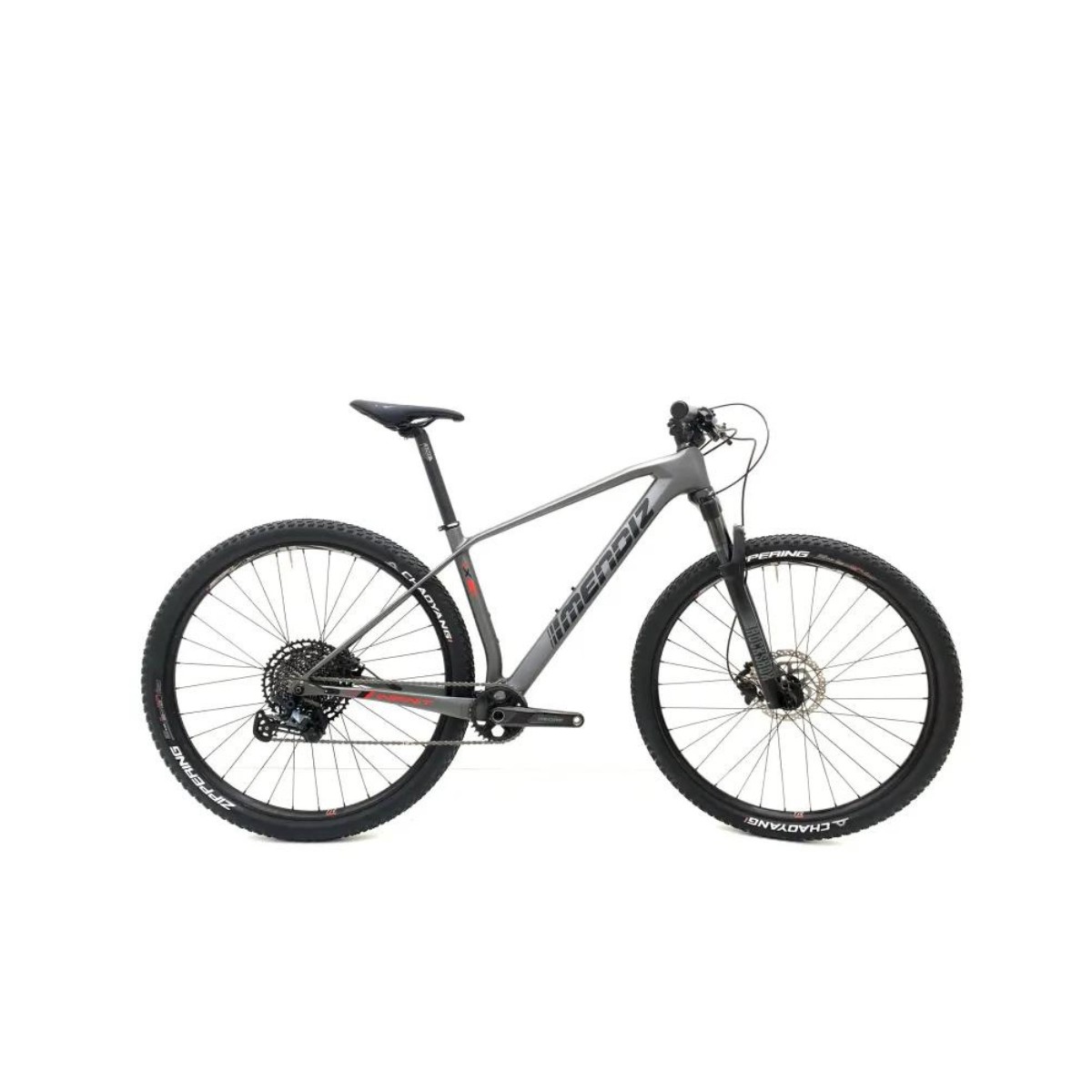

Mendiz X21 Gray Black Bicycle

Mendiz X21 Gray Black Bicycle

The experts at Mendiz have worked hard to come up with a hardtail bike with an efficient redesign. The design of the seat tube concentrates the rider's weight on the handlebars, achieving greater stability on climbs. The compact chainstays allow a ratio between acceleration and handling of the bike.

It is a bike with a rigid carbon frame and 29 '' wheels.

It is a model in which the geometry has a design where the seat tube is very vertical, specifically 74º, which allows descents with great stability and fast climbs. It also has compact pods that allow the cyclist to have a greater speed in acceleration.

It is the ideal bicycle for cyclists looking for rigidity, efficiency and versatility in the same product.


This bike has a stiff carbon frame.

MATERIAL: Rigid carbon

Components (edit)

- Fork : Rock Shock Recon RL Boost

- Change : SRAM NX EAGLE

- Controls : SRAM NX EAGLE

- Cranks : SRAM X1 1000 EAGLE 32

- Casette : SRAM XG 1210 EAGLE 11/50

- Disc brakes set : SHIMANO MT200

- Disc : SHIMANO RT-26 DE180 / TRAS 160MM.

- Wheels : TRYP 25 TUB

- Tires : VITTORIA BARZO TNT (29X2.25)

- Power: DEDA PEAK

- Handlebar : DEDA PEAK

- Tija: DEDA PEAK

- Saddle : SELLE ITALIA SL

SIZES:

YE:

B. Seat tube (center to stop) 390 mm.

L. Horizontal tube 570 mm.

T. Steer tube 95 mm.

P. Rear chainstay 430 mm.

C. Distance between axes 1,077 mm.

F. Axle center to front wheel center 653 mm.

X. Front angle 69.5 °

Z. Seat tube angle 73.5 °

S. Stack 602 mm.

R. Reach 392

L:

B. Seat tube (center to stop) 440 mm.

L. Horizontal tube 600 mm.

T. Steer tube 100 mm.

P. Rear chainstay 430 mm.

C. Distance between axes 1,107 mm.

F. Axle center to front wheel center 684 mm.

X. Front angle 69.5 °

Z. Seat tube angle 73.5 °

S. Stack 606 mm.

R. Reach 421

XL:

B. Seat tube (center to stop) 489 mm.

L. Horizontal tube 630 mm.

T. Steering tube 115 mm.

P. Rear chainstay 430 mm.

C. Distance between axes 1,138 mm.

F. Axle center to front wheel center 714 mm.

X. Front angle 69.5 °

Z. Seat tube angle 73.5 °

S. Stack 621 mm.

R. Reach 446

The images may not match the product offered.

Reference: X21.02
