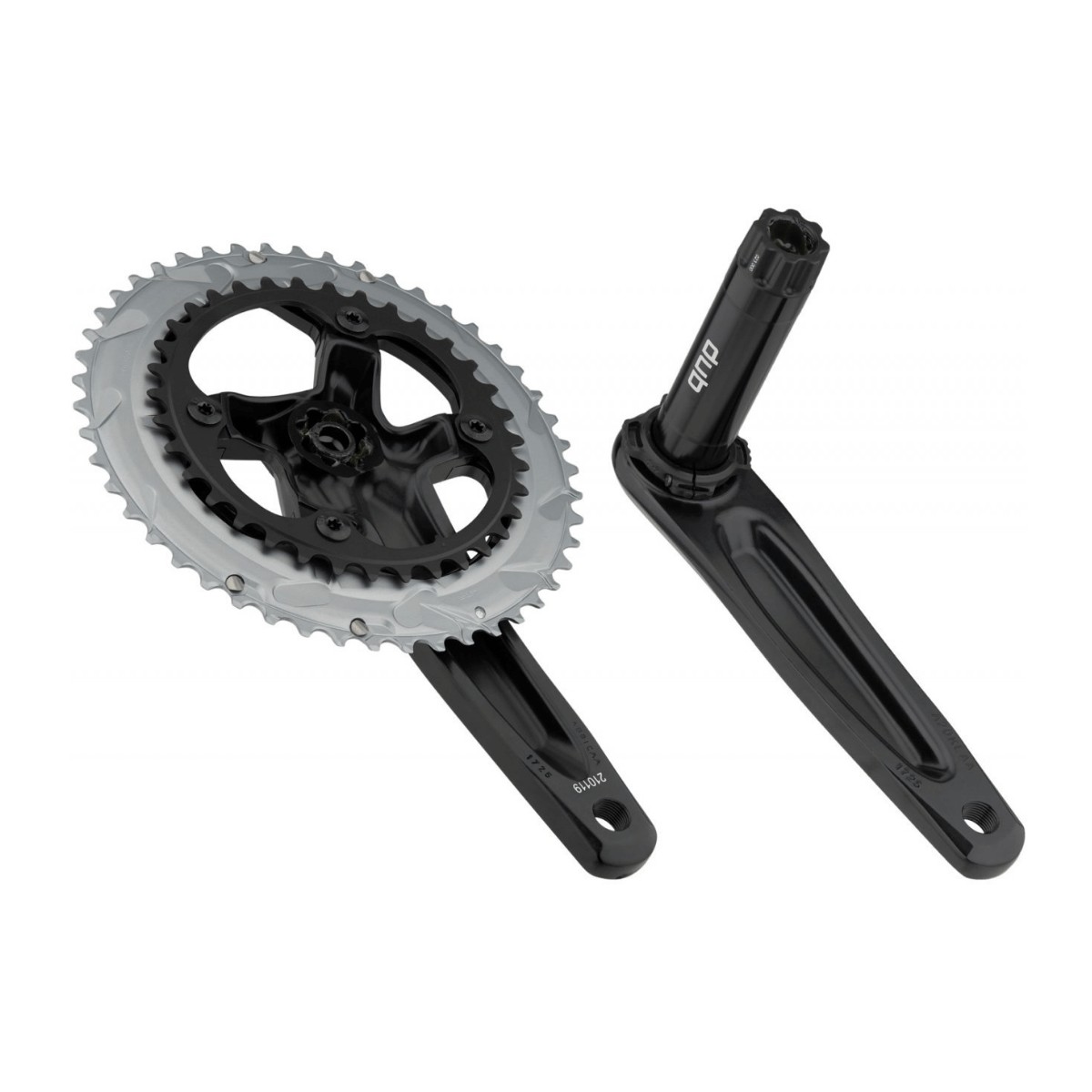

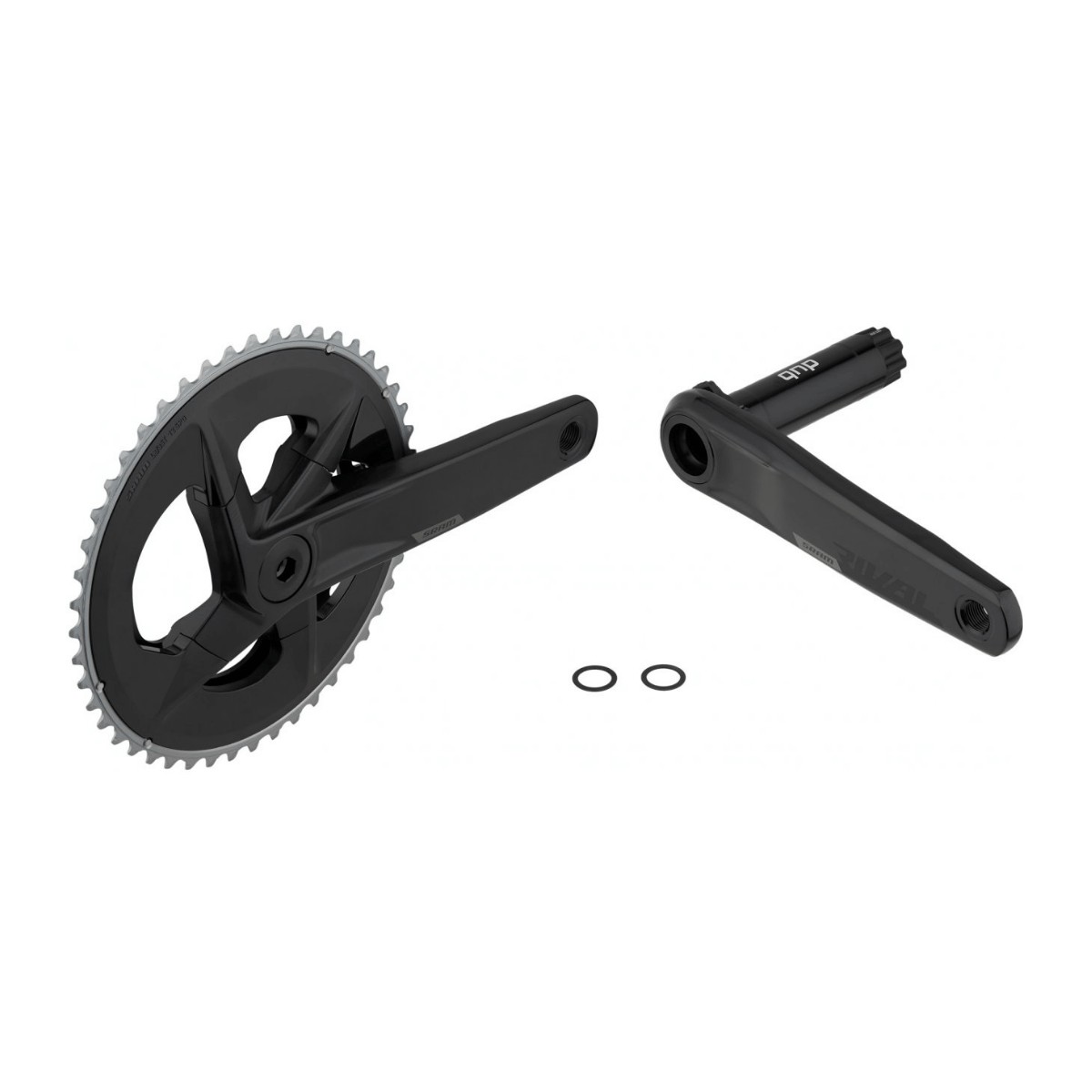

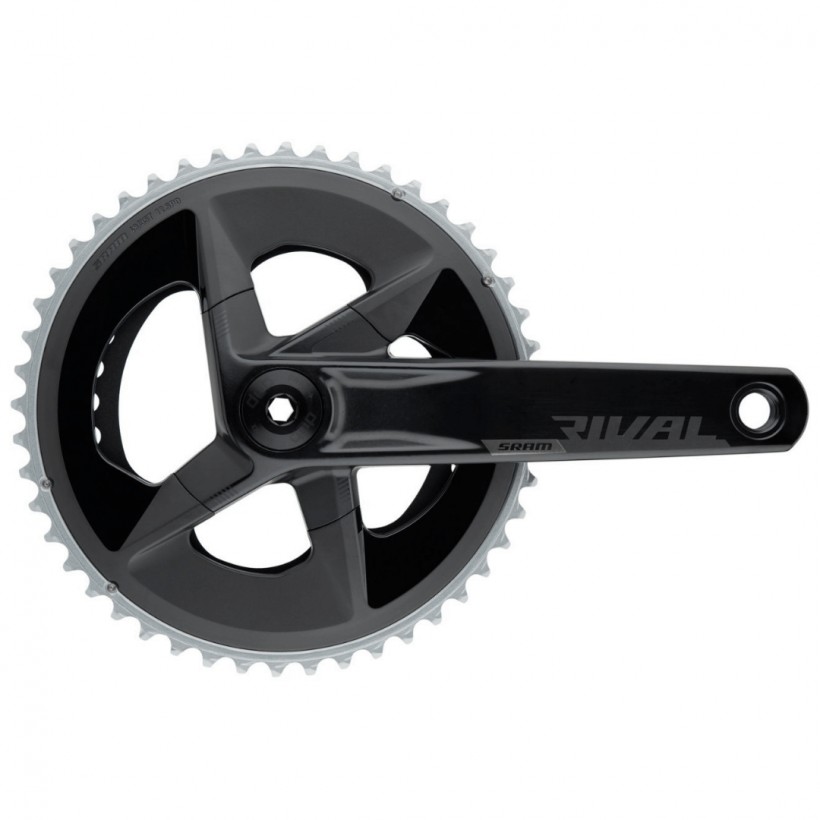

SRAM Rival AXS 2x12-speed crankset 175mm 46/33

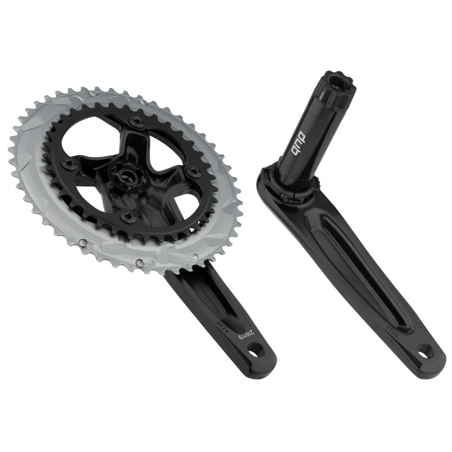

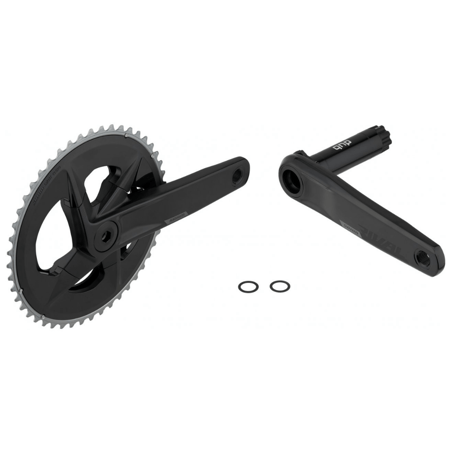

SRAM Rival AXS 2x12-speed crankset

This SRAM Rival series crankset is compatible with DUB inboard bearings and is designed for two speed forward and twelve speed reverse drivetrains. The 13 tooth X-Range ™ spacing creates a good foundation for smooth gear gradation.

The 13 tooth X-Range ™ spacing creates a good foundation for smooth gear gradation. Gear changes are quick and straightforward. Thanks to DUB technology, mounting the crankset in combination with a DUB inner bearing is really easy and you get a reliable and long-lasting drivetrain. If you wish, you can retrofit the crankset at any time with the Rival DUB Powermeter upgrade kit.

Specifications

Field of application: Route

Compatibility: 2x12 speed

Chainring Fixation: 107mm Hole Circle, 4 Asymmetrical Arms

Technical data

Series: Rival

Crank arm material: Aluminum

Chainrings Material: Aluminum

Gradation: 33-46, 35-48

Crank Arm Length: 160.0mm, 165.0mm, 170.0mm, 172.5mm, 175.0mm

Chain Line: 45.0mm

Shaft diameter: 28.99mm

Inner bearings (recommendation): DUB Road inner bearing

Chain (recommendation): Rival 12-speed PowerLock

features

- 13 tooth gradation for wide range and harmonious gear changes

- a smooth and precise shift

- durable and simple thanks to DUB technology

- can be upgraded to a power meter with the corresponding upgrade kit

Technologies

DUB ™

The inner bearing shaft and connecting rod unit is the heart of DUB technology. Here stiffness meets durability. SRAM has gone one step further and made everything easier and better. It is the approach of the system through the integration of the chainring, connecting rod, axle and inner bearings that is decisive for better transmission performance.

X-Range ™

X-Range technology was developed with the capabilities of today's dropbar bikes in mind. It is distinguished by a wide band of gear ratios with smooth and even gear changes. Combining 13 tooth spaced chainrings with a wide bandwidth cassette, starting with a 10 tooth sprocket, ensures well thought out and smooth gear jumps and always puts you in the right gear. In combination with the AXS, you can make various switch settings and customize your transmission to suit you.

REFERENCE: 00.6118.614.007
