SRAM Red eTap AXS HRD FM 2x12-Speed Centre Lock Shifting Groupset

SRAM Red eTap AXS HRD FM Centerlock 2x12 speed derailleur set

The SRAM Red eTap AXS ™ HRD FM groupset set for 2x12 disc offers you a wide range of gears and a narrow gradation, you will always find the right gear and enjoy a smooth, safe and quiet ride.

The group allows you to adjust the shift / brake levers to adapt them to the size of your hand and the width of the levers. Shifting is wireless and the shift levers are mounted inside the brake levers. The eTap shift logic, in which one lever is used to raise and one to lower, is intuitively understood.

The AXS system allows you to easily customize the group from your smartphone and make adjustments while driving. Orbit ™ technology also ensures quick and quiet shifting. When it comes to braking , SRAM's award-winning HRD platform enables Flat Mount disc brakes to deliver exceptional performance. Reach the next level and focus on what matters most: Your ride.

Technologies

- eTap : SRAM's eTap uses simple, unambiguous and intuitive shift logic. With the left gear lever you drive the rear derailleur in to a larger sprocket, with the right gear lever out to a smaller sprocket. With the gear lever depressed, you can directly shift multiple gears. Pressing both gearshift levers at the same time produces a 2-speed derailleur movement.

- AXS ™ : AXS is the new electronic integration of SRAM, it allows to perfectly combine the electronic components of the bicycle with the software. The SRAM AXS app lets you view battery status, change component behavior, adjust controls, receive maintenance reminders, and update firmware.

- Orbit ™ : Orbit technology is an innovative new way to control rear derailleur movement. It uses silicone fluid as part of a sleek, ultralight cushioning system. Compared to a conventional friction clutch system, Orbit technology does not generate any additional resistance in the rear derailleur spring during slow or light movements. This means easier shifting and easier removal of the rear wheel. During the ride, the liquid damper holds the chain in a sophisticated and elegant way. With maximum reliability and chain tension, for 1 and 2 speed systems.

- Yaw ™ : The SRAM Yaw derailleur cage rotates in sync with the chain. This ensures an optimal shifting process in every gear.

Specifications

• - Series: Red eTap AXS
• - Type of activity: Route
• - Shift system: 2x12 speed (wireless)
• - Brakes: Hydraulic disc
• - Tweezers: Flat Mount anchor
• - Discs: CLX 160 mm., Centerlock central anchor
• - Components
• - Front derailleur: Soldare
• - Change: Central box (10-26, 10-28, 10-33)

The product includes :

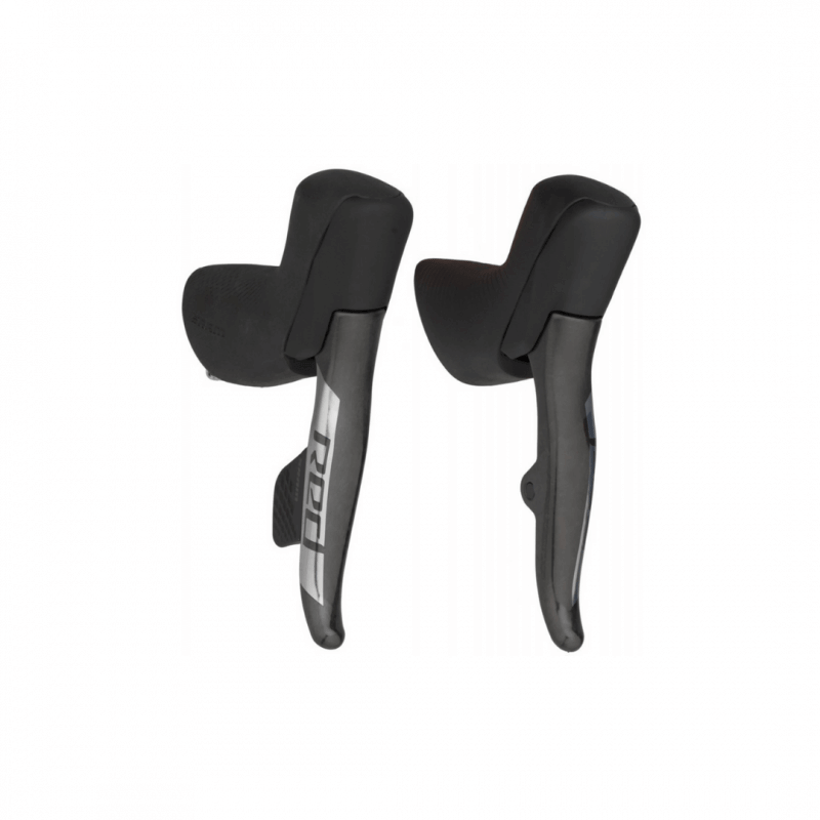

- 1 pair of SRAM Red eTap AXS HRD FM shift / brake paddles

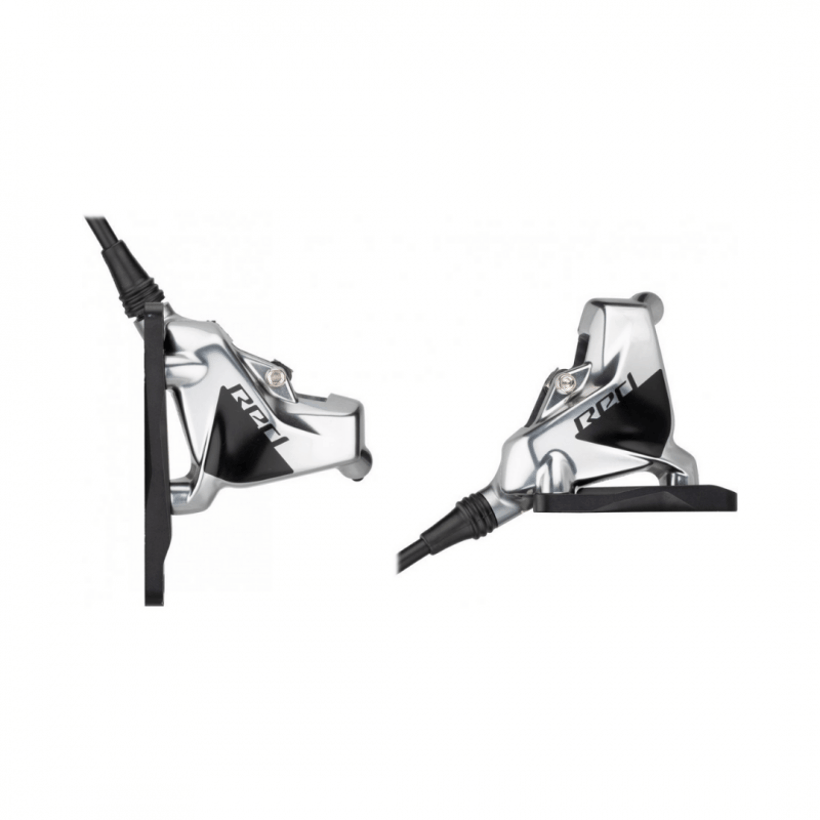

- 1 pair of SRAM Red AXS disc brakes (Flat Mount), ready to mount full and bleed

- 2 x SRAM caliper adapter for 160mm discs

- 1 x SRAM Red eTap AXS rear derailleur with rechargeable battery

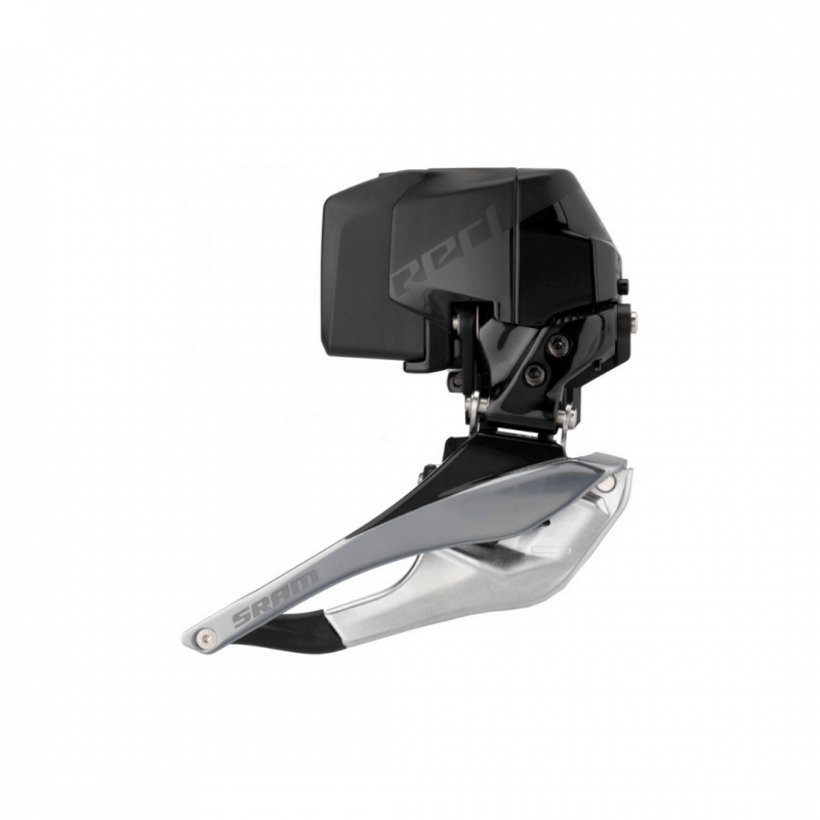

- 1 x SRAM Red eTap AXS front derailleur with rechargeable battery

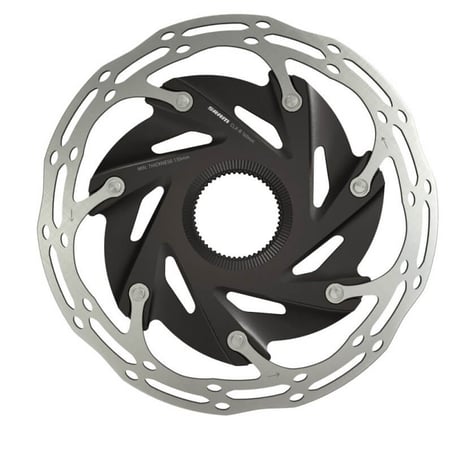

- 2 x SRAM CLX 160mm brake disc and Centerlock central mount

- 12 x SRAM mounting bolt for brake disc

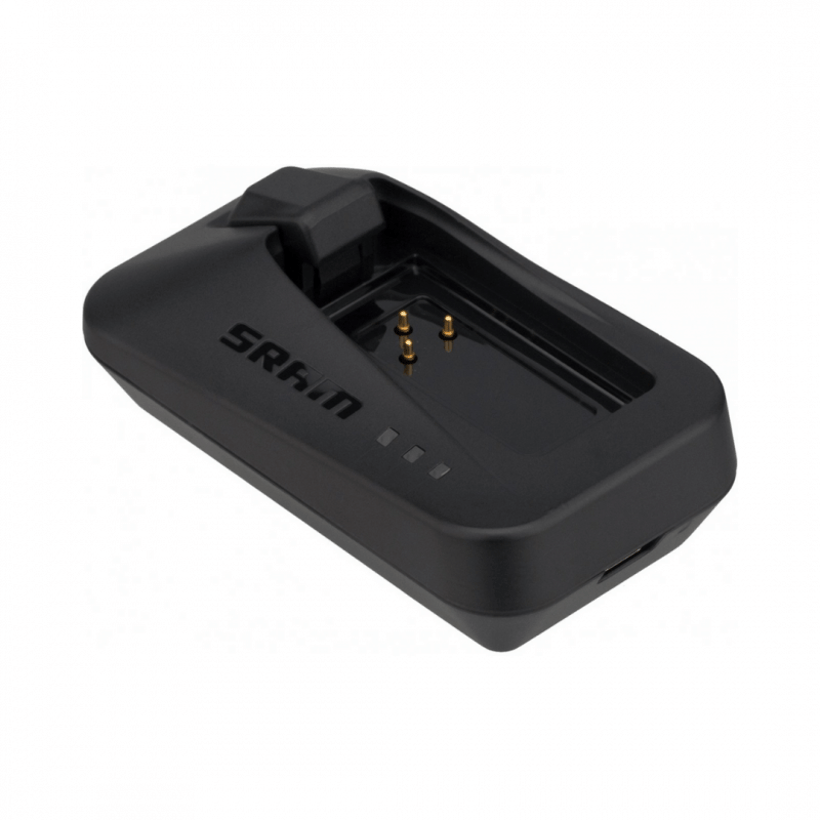

- 1 x SRAM battery charger

- 1 x SRAM charger cable

- 2 x Olive SRAM for brake hose

- 2 x SRAM Insertpin for brake hose

- 6 x SRAM Titan mounting bolt for brake caliper

- 4 x SRAM Washer

- 1 x SRAM fixing screw for front derailleur

- 1 x SRAM washer for derailleur

- 1 x SRAM screw for derailleur wedge

- 3 x Adapter wedge for SRAM derailleur

- 1 x SRAM T8 Torx Key

- 1 x SRAM bleed kit

- 1 x SRAM rear derailleur gauge

- 1 x SRAM derailleur caliper

- 1 x SRAM brake disc caliper

REFERENCE: 00.7918.078.010
