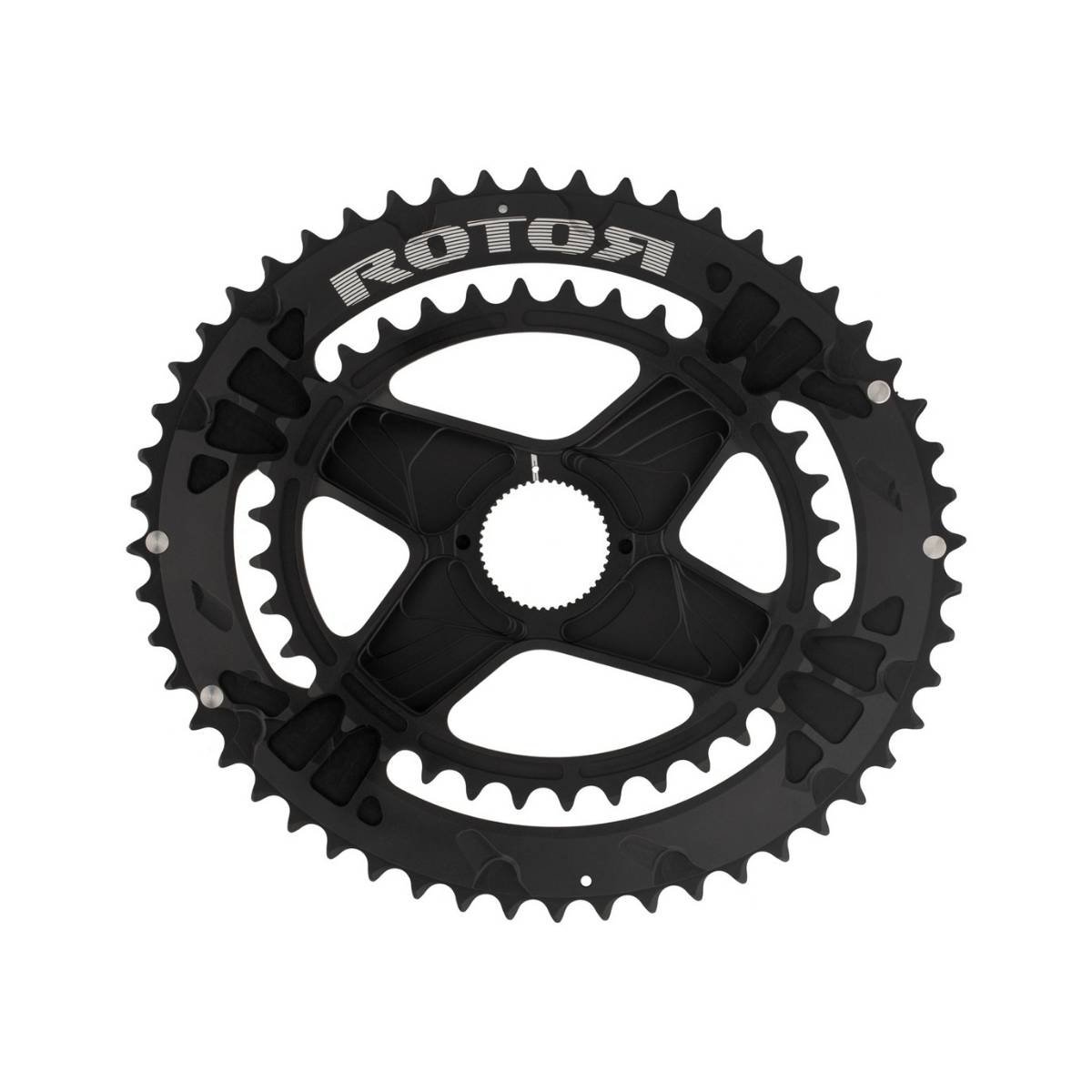

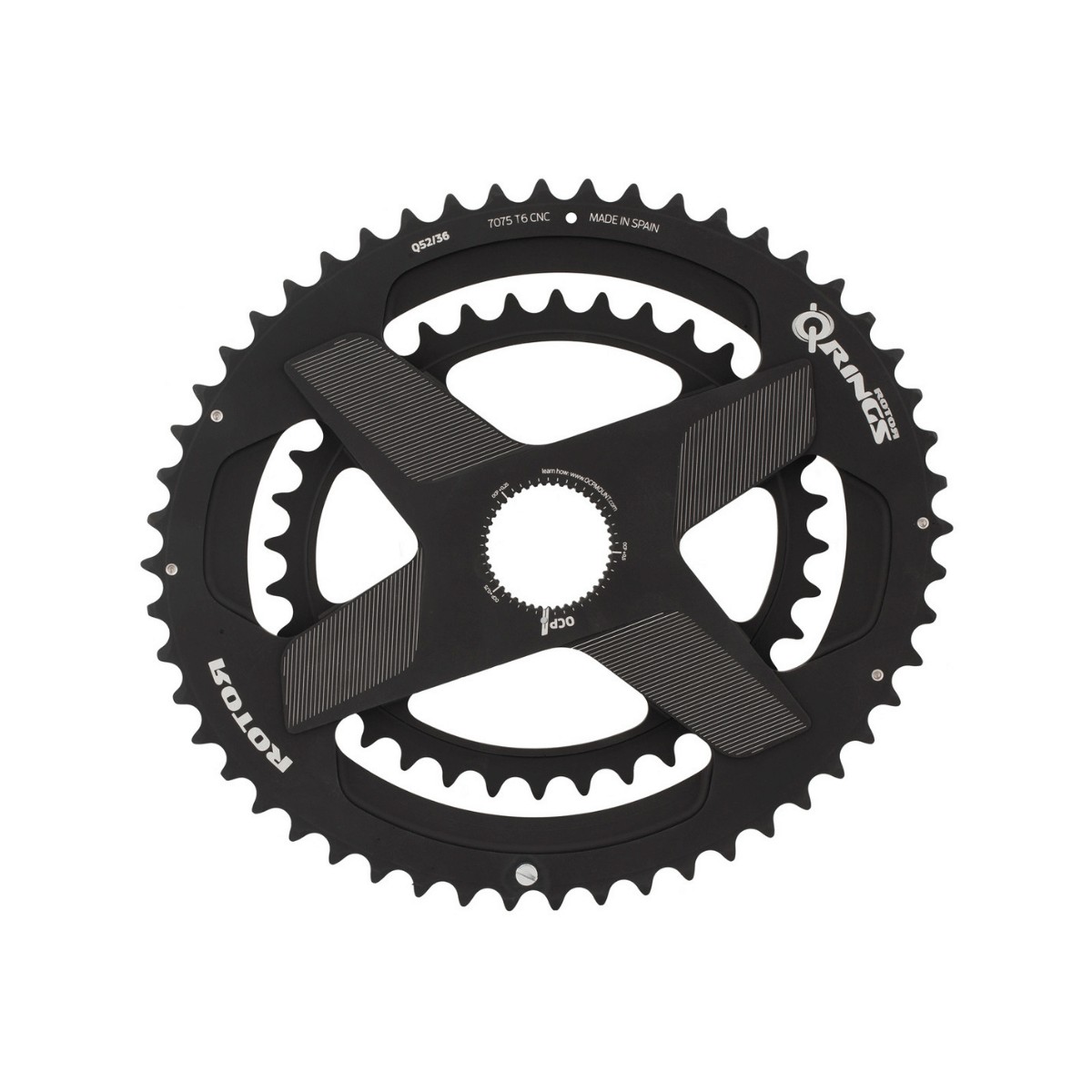

Rotor Aldhu 3D Chainrings + QRings Spidering Aero Black 52/36

Rotor QRings Spidering Aero Black 52/36 Chainrings

Rotor Spidering double chainwheels are made from one piece and are mounted on the shaft using the Direct Mount method without the need for tools.

To change the chainrings, you only need a 10mm hex wrench to mount / remove the crank arm on the transmission side. Clicking due to screw connections between spider and chainring is now a thing of the past.

Whether with round chainrings or Rotor's oval Q-Rings, anything is possible. For the first time, the Direct Mount system allows fine adjustment of oval chainrings in 1 degree steps and thus an incomparable individualization according to personal needs.

• - combination of dishes in One-Piece-Design
• - OCP (Optimum Chainring Position) Mount technology: fine adjustment of the orientation of oval chainrings via five mounting positions of the crank on the axle and numerous mounting options for the spidering or chainrings
• - easy change of plates with an Alle key

Compatibility

• - With ALDHU 3D +
• - With VEGAST
• - INPower DM Road
• - 2INPower DM Road

Specs

• - Field of application: Route
• - Fixation: Rotor Direct Mount
• - Teeth: 52-36
• - Transmissions: 2x10-speed, 2x11-speed
• - Model: oval 12.5%

REF: C01-039-09010-0
