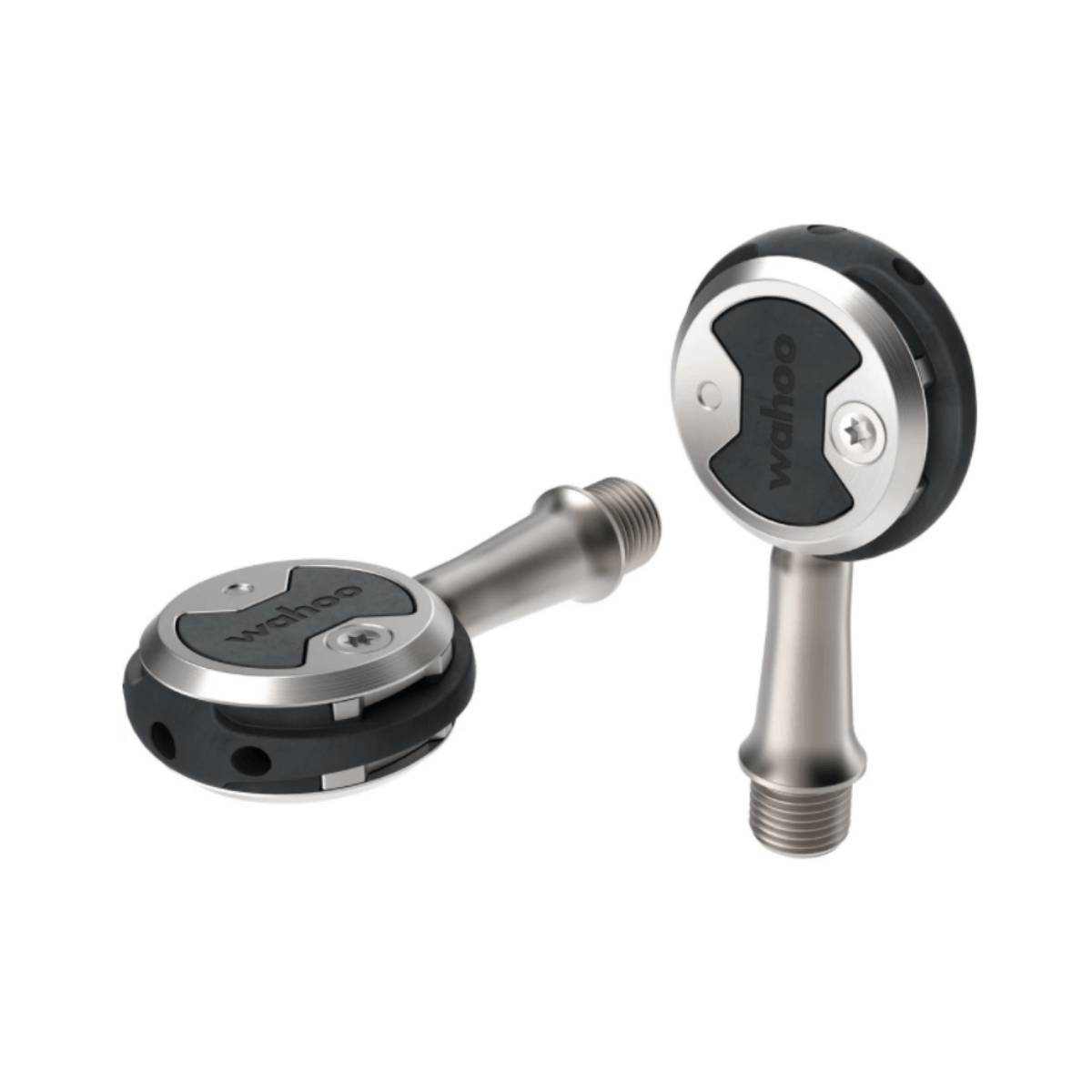

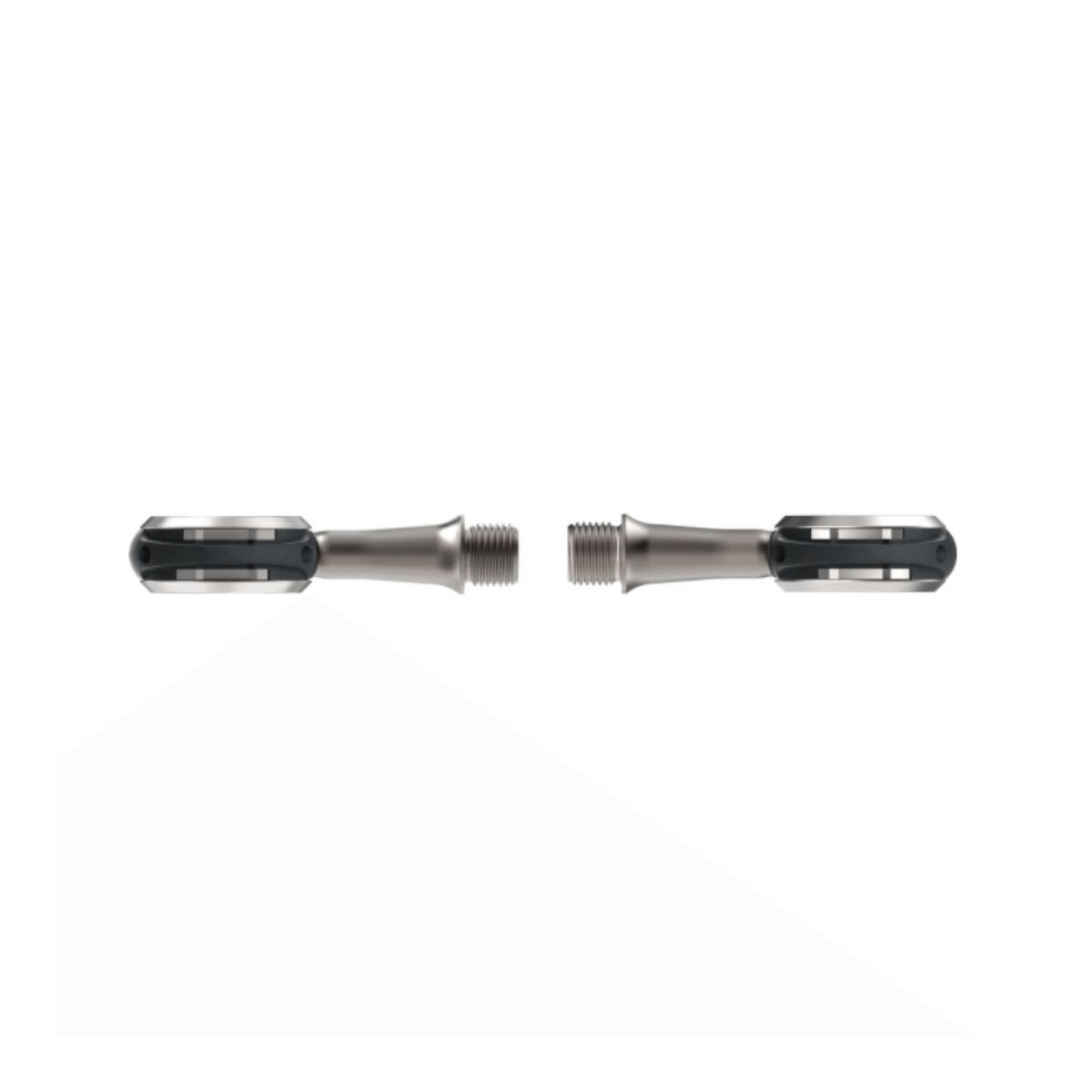

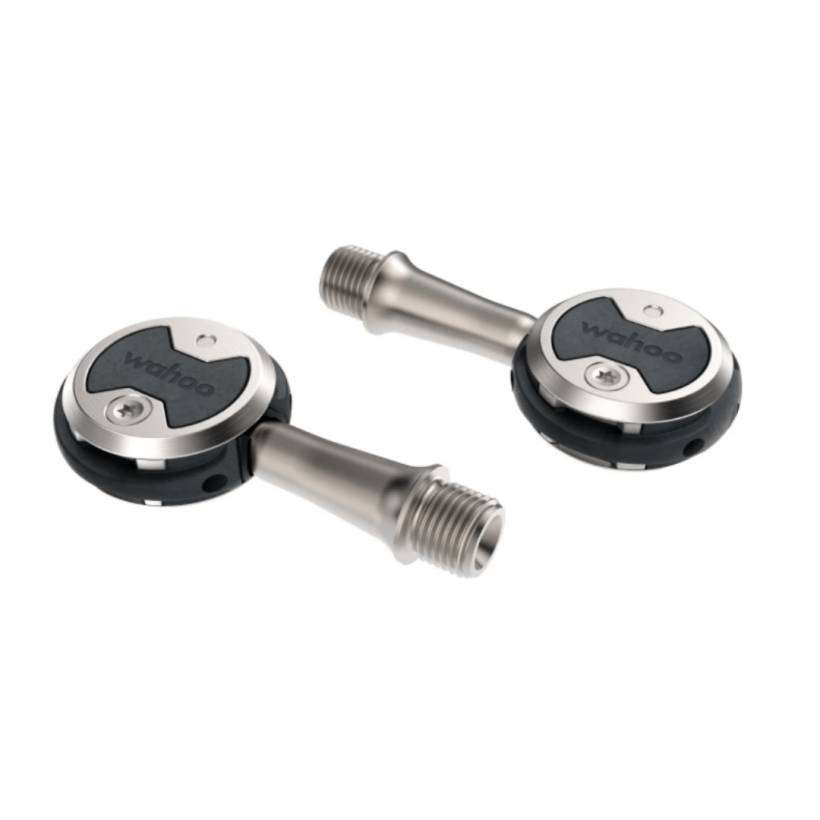

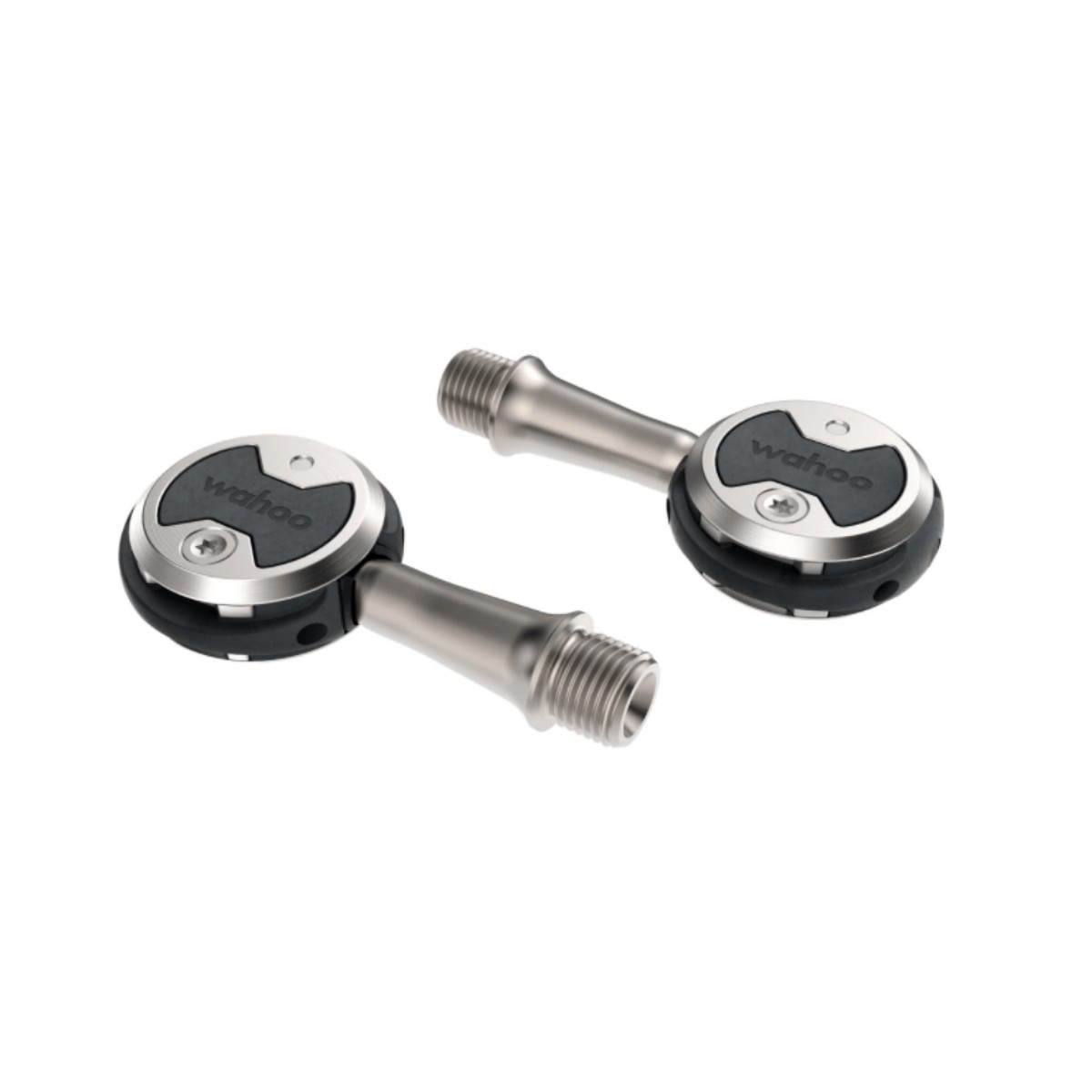

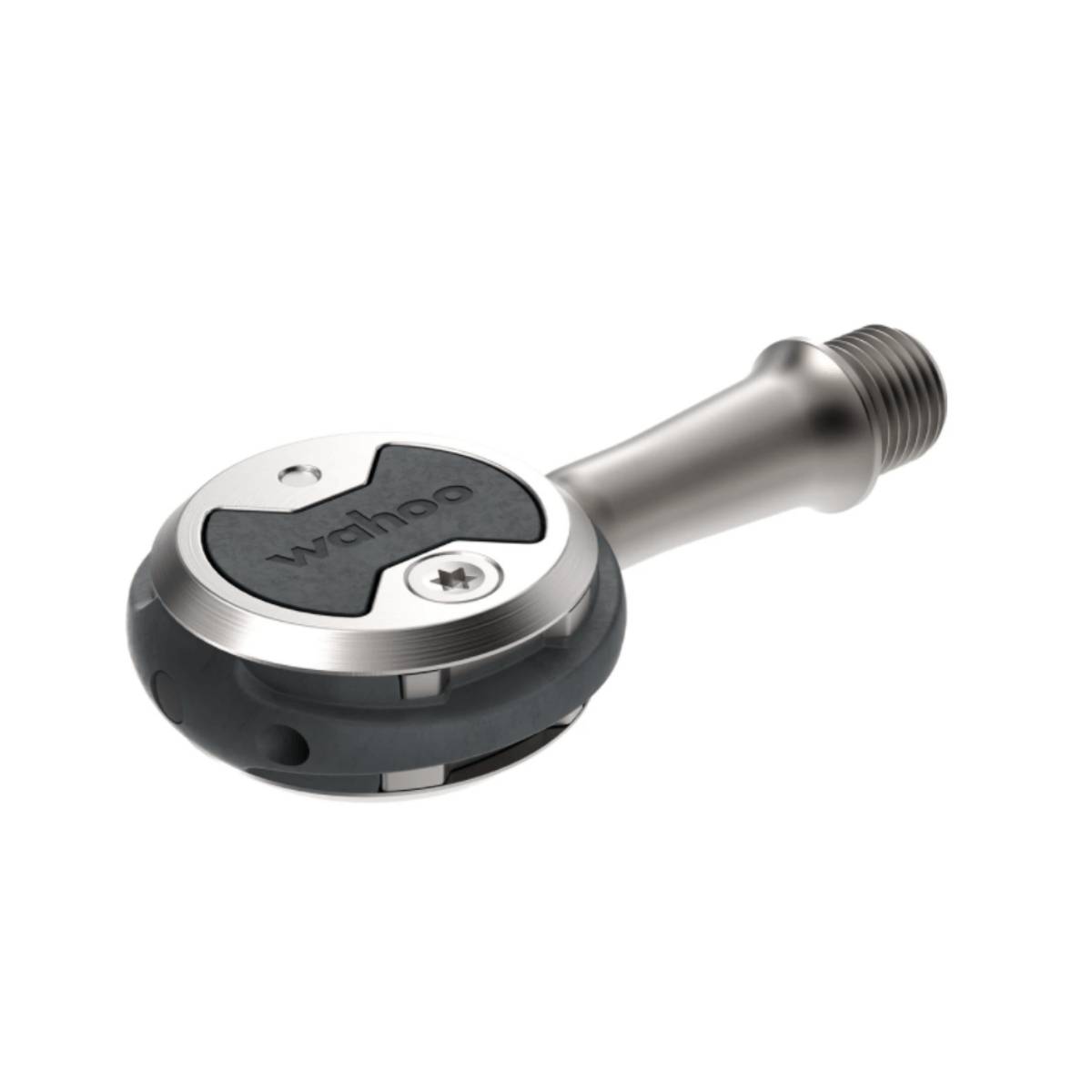

Wahoo Speedplay Nano Cleats Standard Pedals

Wahoo Speedplay Nano Cleats Standard Pedals

With carbon composite bodies, titanium axles, and triple sealed bearings, the Wahoo Speedplay Nano pedals offer the rider micro-adjustments and improved power transfer within a super lightweight yet durable package.

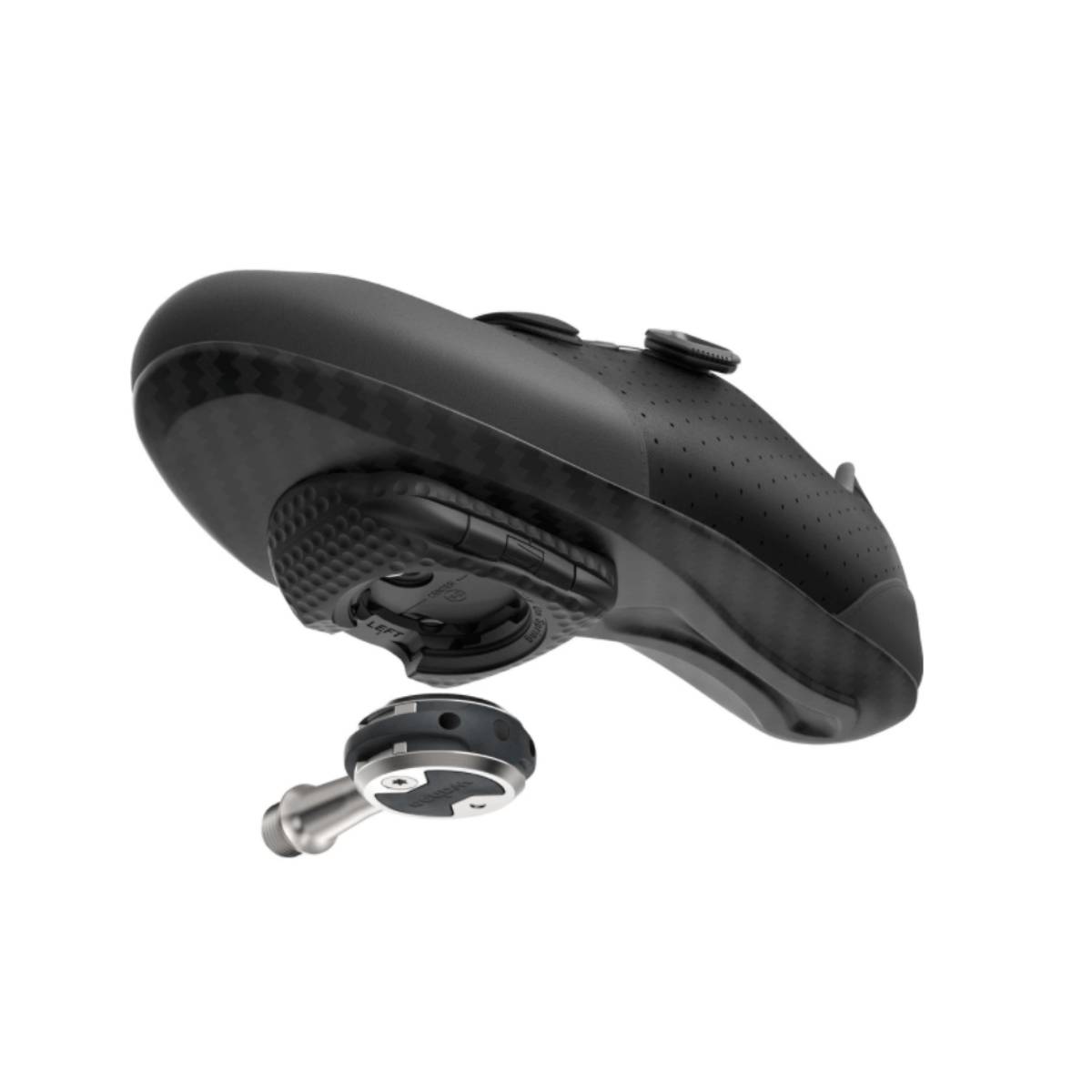

The pedal and cleat are seamlessly integrated to create a solid, aerodynamic interface, and this is combined with best-in-class stack height to give the rider greater connection and stability. This improved connection allows for maximum power transfer, smoother pedaling and greater efficiency, allowing the rider to perform at their best when training and competing in their target events.

The reduced stack height can also help the rider aerodynamically as they can adopt a lower position on the bike.

Slim cleats offer three-axis adjustment, allowing for precise alterations in longitudinal, left-to-right and rotational positioning. This generous level of adaptability allows for tremendous precision in bike fit to improve pedaling ergonomics and reduce overuse injuries. The cleat offers between 0 and 15 ° of float that the rider can change depending on the bike's fit requirements and preferences.

The slim profile of the pedal and cleat combination offers excellent cornering clearance, allowing the rider to pedal more corners rather than coasting, while the double-sided format means less clumsiness when traversing traffic lights and junctions. Rubber cleat rims complete the package to reduce aerodynamic drag and provide extra grip when moving away from the bike.

IT INCLUDES:

• Left and right pedals.

• Standard tension cleats, including 3-bolt base plate and all cleat edges.

• Screw pack.

• Quick Start Guide.

• Important Product Information Guide.

FEATURES:

• Physical Dimensions: 3.9 "x 2" x 2 ".

• Manufacturer's declared weight: 168 grams per pair.

• Stack height: 11.5mm (with 3-hole base plate) 8.5mm (when cleat is attached directly to a 4-hole shoe sole).

• Q factor: 53 mm.

• Body Material: Carbon Composite.

• Shaft material: titanium.

• Bearing type: triple sealed cartridge and needle bearings.

• Free space in curves: 39 °.

• Maximum rider weight: 180 lbs / 82 kg.

• Studs: standard tension included.

• Release angle: micro-adjustable from 0 ° to 7.5 °.

• Pedal float: adjustable from 0 ° to 15 °.

• Cleat longitudinal adjustment: up to 13 mm.

• Cleat adjustment from left to right: up to 8mm.

• Walkable block: Yes (adapter included).

COD. REFERENCE: WFPRN1S53
