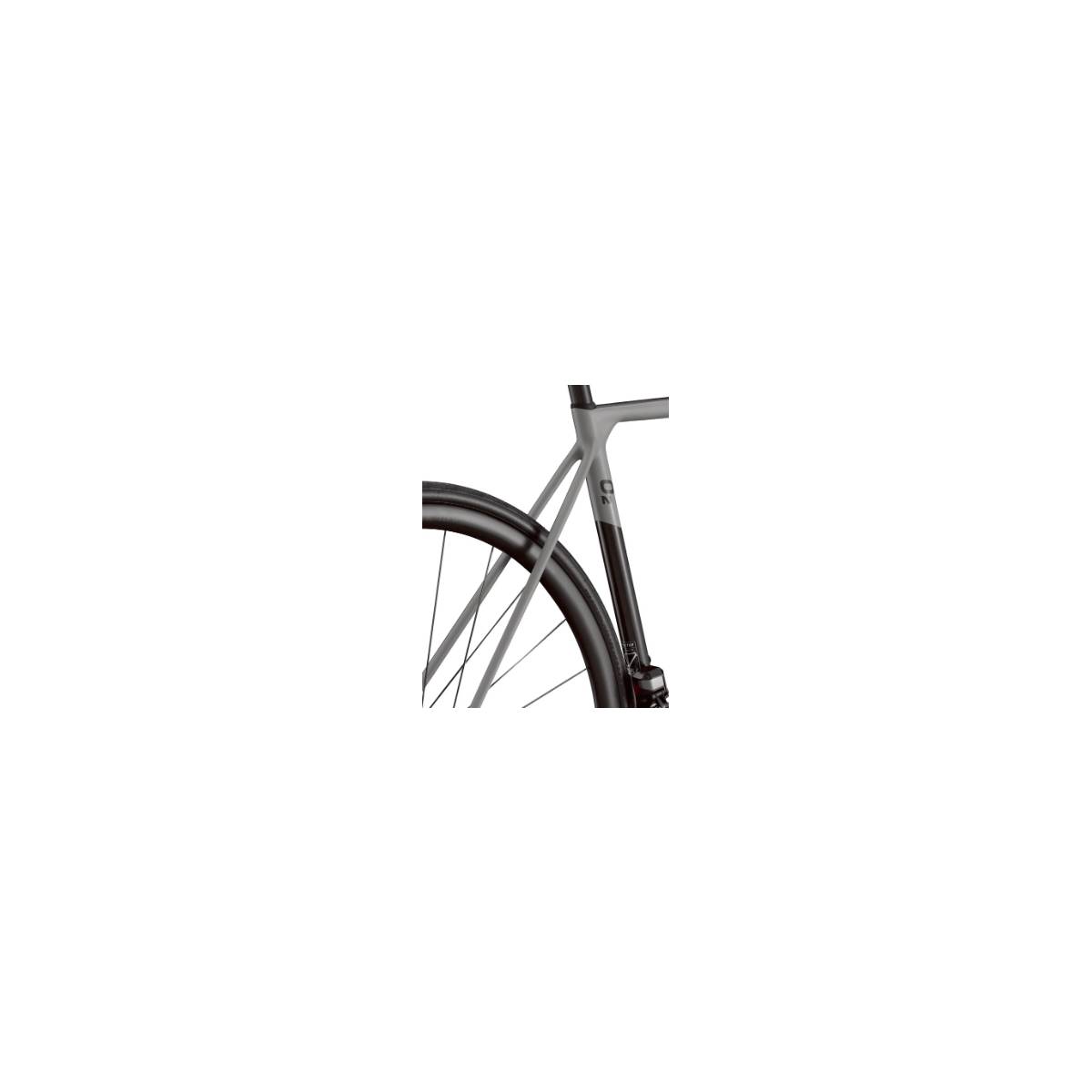

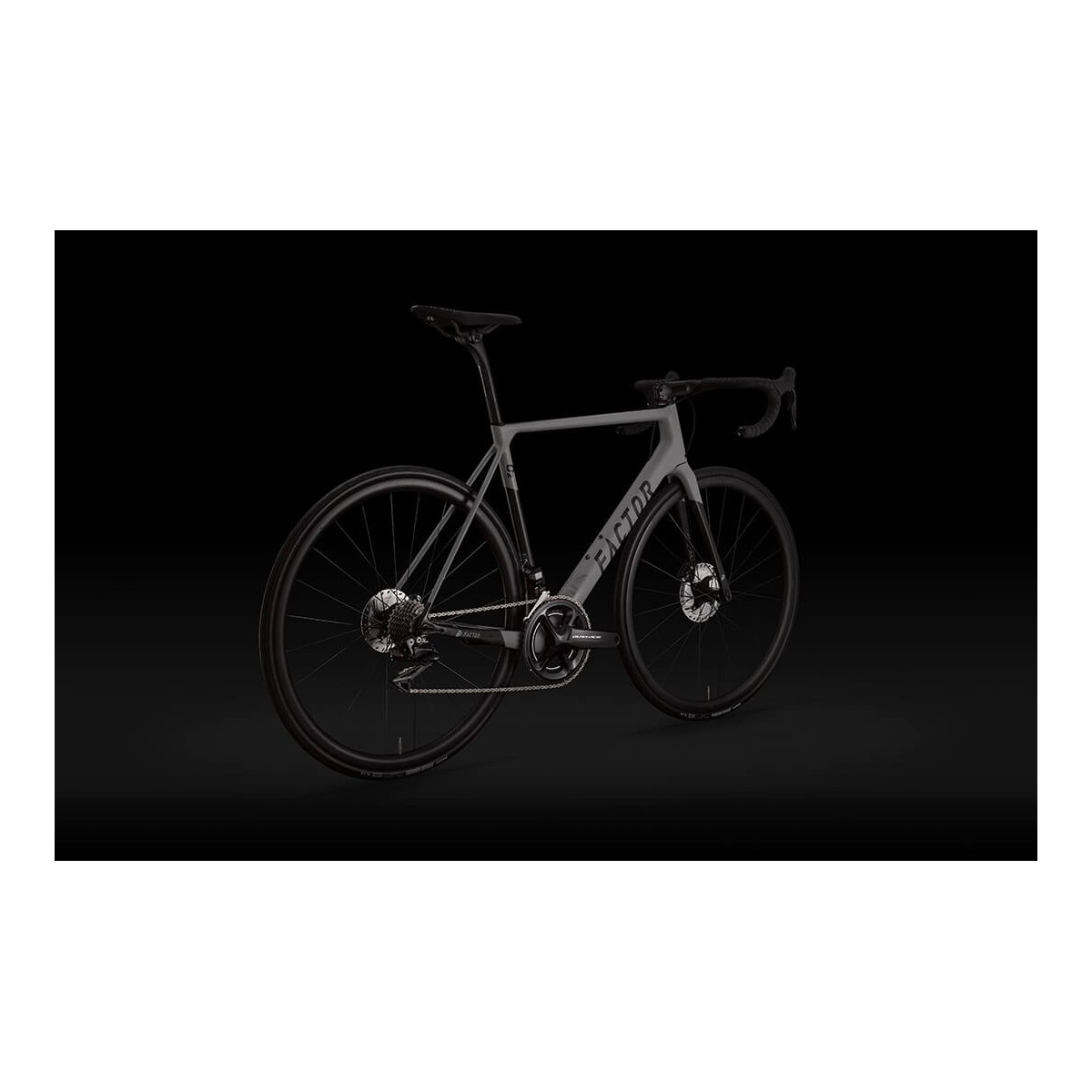

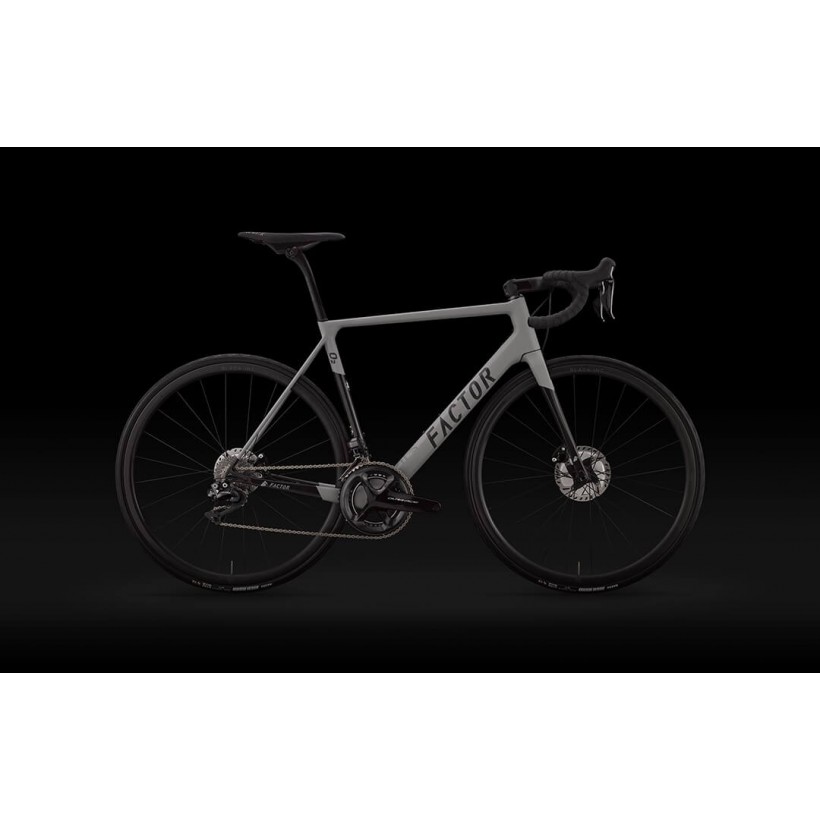

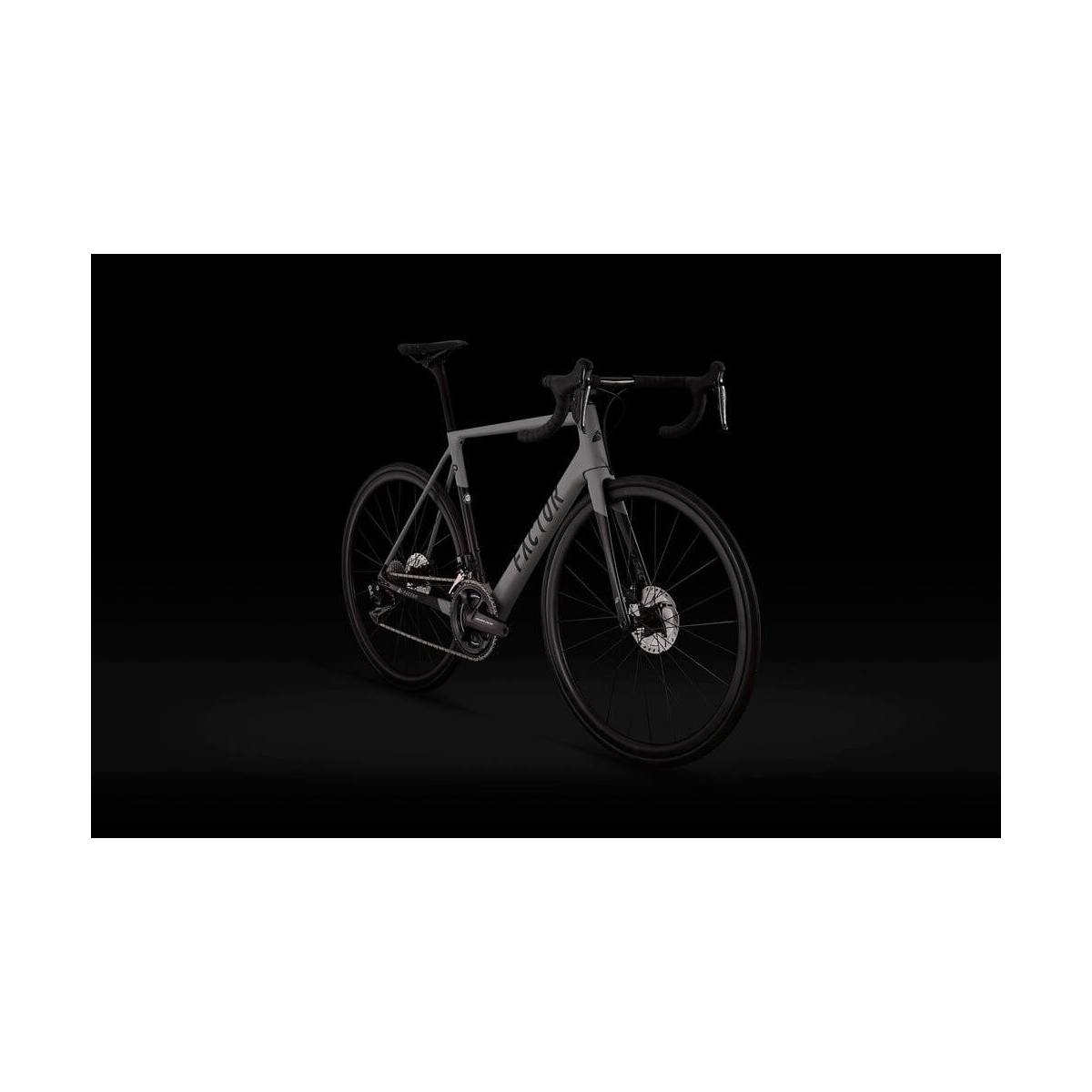

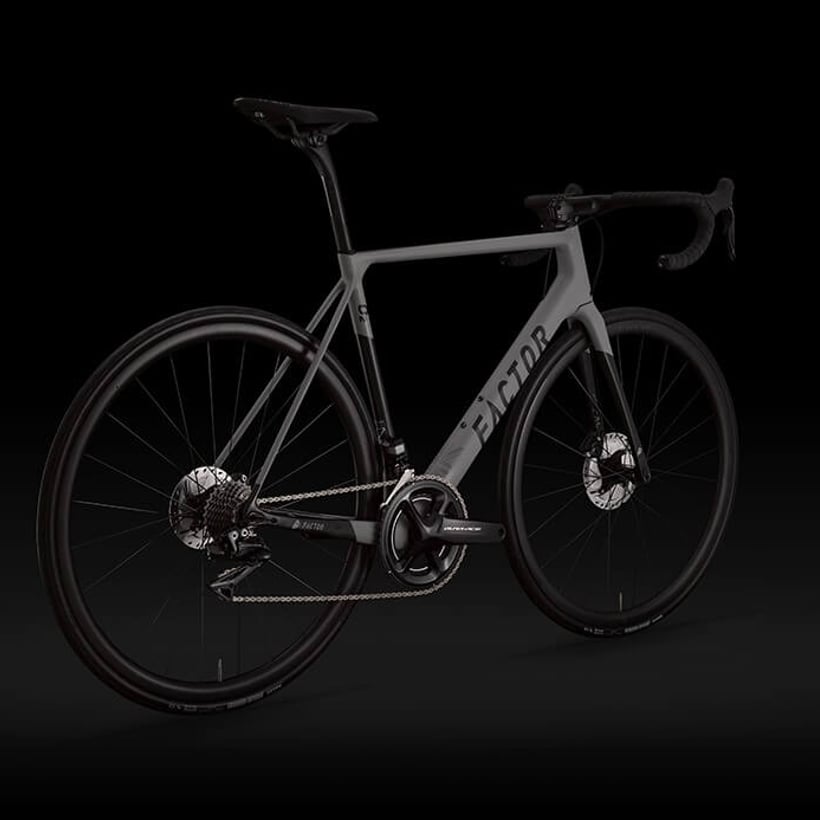

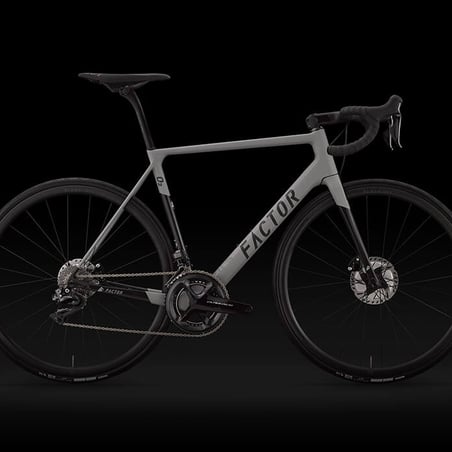

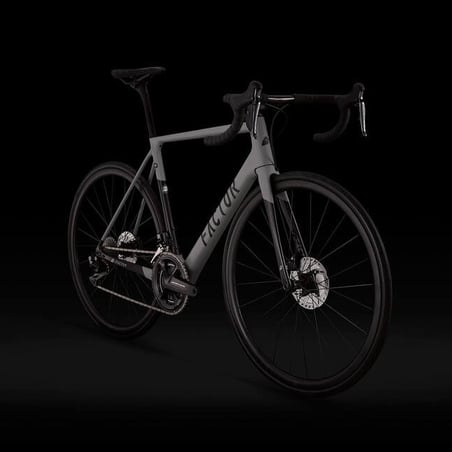

Factor O2 Disc Frame & Fork Kit Matte Gray
Designed to be a climber, the O2 excels at ascents. However, limiting your abilities to just climbing would be a crime. It can flow through curves and travel long distances as demonstrated by its podiums in the Tour de France and in Paris Roubaix.
Factor O2 Disc Frame & Fork Kit Matte Gray
Designed to be a climber, the O2 excels at ascents. However, limiting your abilities to just climbing would be a crime. It can flow through curves and travel long distances as demonstrated by its podiums in the Tour de France and in Paris Roubaix.
Every tube and section of the O2 has been designed and developed for maximum power transfer under load, but also vibration dampening for a more comfortable ride.
The O2 does all of that in style, with a slim profile that will subtly stand out in any rump. Elegance, all-day comfort and high performance come together.
The FACTOR O2 offers a high performance ride capable of meeting the demands of the fastest riders in the ProTour peloton. This is the result of meticulous geometry design work, optimization of the structural carbon fiber arrangement (for best power transfer with minimal weight) and careful selection of components.
Aerodynamic fork
Such a feat is the result of long hours of FEA (Finite Element Analysis) during the design phase, followed by numerous carbon placement prototypes and testing both in the lab and on the road.
The Svelte fork uses a tapered head tube with a 1-3 / 8 "lower bearing, with the crown integrated into the lower tube of the frame for increased steering precision and aerodynamic gains.
The disc version of the Svelte fork largely follows the shape and size of the rim brake fork, but with a slightly asymmetrical design and specific arrangement to resist the braking forces of the disc.
Power transmission
The continuous structure from the down tube to the O2 frame pod provides unsurpassed stiffness for minimal power loss and maximum drivetrain performance. Using larger and wider tubes with a more continuous shape allows us to use longer sheets of carbon fiber, for a stronger and lighter structure.
At the head of the power transmission is the BBright bottom bracket. We chose BBright as it offers the widest possible bottom bracket shell for a smoother, stiffer transition from the wide, asymmetrical downtube to the shoulder straps. All of this allows the carbon fiber sheets to be placed smoothly in this area, with high compaction, without sharp or thin shapes that add weight and decrease structural integrity. The asymmetric bottom bracket (narrower on the drive side) BBright also improves clearance with small chainrings and power meters.
A sectional cut of the case reveals the enlarged structure created by the reinforced connection between the down tube, the riser and the bottom bracket itself. Asymmetric high chainstays make use of the full available volume of the bottom bracket for additional stiffness at a low weight, leaving room for 28mm tires and large chainrings.
What includes?
Integrated handlebar and stem
- Integrated design of stem and handlebar in one piece.
- Titanium screws.
- Internal wiring for brakes and co-molded gear slots.
- Compatibility with the latest generation Shimano DI2 handlebar junction box.
Seat post
Using a combination of different types of carbon fiber materials, we can produce a seatpost that presents a certain comfort and at the same time is efficient in transferring the pedaling power of the rider.
Ceramic Bearings
- Ceramicspeed PF4630 bottom bracket - Aluminum cups / Low friction ceramic bearings. Includes reducers / adapters for 24mm axle cranks and BBRight.
- Ceramicspeed Headset 1-1 / 8 upper and 1-3 / 8 lower headset bearings.
COMPONENTS
- Factor handlebar tape
- O2 steering compression plug
- Sheath protector
- Carbon mount grease
- Garmin integrated handlebar mount
- M5x16mm screws
- BB30 ceramic bottom bracket
- Di2 battery mount for seatpost
- O2 rear derailleur hanger
- M3 flat head screw
- O2 seatpost wedge
- 7 × 7 outer clamp
- 5mm steering spacer
- 10mm steering spacer
- O2 silicone seatpost O-ring
- M6 front brake nut
- Blank cover for Di2 cable
- 7x8 cable grommets
- Compression ring
- 1-1 / 8 ″ ceramic headset bearing
- 1-3 / 8 ″ ceramic headset bearing
SPECS
Frame Material - RBi Carbon
- Wheel size - 700c
- Fork - Svelte Disc
- Head tube diameter - 1-1 / 8 upper and 1-3 / 8 lower
- Steering bearings included - CeramicSpeed
- Internal wiring
- Derailleur anchor welded
- Brake type - Disc
- Frame compatible with electronic and mechanical groups
- Seatpost - Black Inc.
- Handlebar and stem - Black Inc.
- Front axle - 12 x 100 mm thru axle
- Rear axle - 12 x 142 mm thru axle
- Recommended use - road cycling
- Manufacturer's warranty - 5 year warranty
- Max. permissible tire width - 28 mm
- Finish / Color: Matte Gray
- Weight: 750 gr Approx.
* To be able to choose the delay of the seatpost (0-15mm) and the different sizes of the handlebar and stem¹ please leave it indicated in comments when you place the order.
¹Sizes available for handlebar-stem assembly:
380x90 / 380x100 / 380x110 / 380x120
400x90 / 400x100 / 400x110 / 400x120 / 400x130
420x90 / 420x100 / 420x110 / 420x120 / 420x130
440x90 / 440x100 / 440x110 / 440x120 / 440x130
*CUSTOMIZE YOUR RIDE NOW OR FIND MORE INFORMATION BY CONTACTING US AT [email protected]
